- Size: 800*400*1200
- Place of Origin: jinan
- Brand Name:
- Model Number: YES-1500B
- Weight: 800.000 kg
A list,

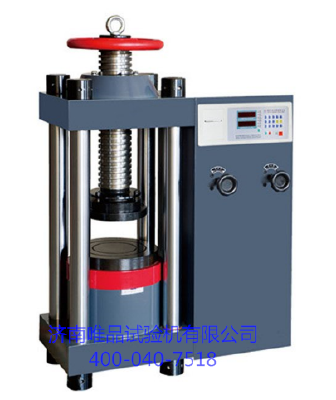

The machine adopts the host with the hydraulic system set in the integration of structure form, the structure is compact, small and exquisite. Adopts hydraulic loading, electronic load, a load rate, according to the function such as peak holding, and equipped with a micro printer.
Second, the hydraulic system
Inside the fuel tank of hydraulic oil through the motor drive the high pressure pump into the oil, oil flows back to the valve, into the cylinder. Force measuring instrument analysis of data gathered by sensors, displays all the strength, the operator through the oil valve control flow, realize the test force rate speed.
Third, the force measurement and control system
L manually adjust back to the oil valve, concise and flexible operation;
L has the maximum peak load function;
L have loading rate dynamic display function;
L have a test date, number, failure load and the compressive strength of random test report
Fourth, safety protection device
When more than 3% of the maximum test force test force, overload protection, stop the oil pump motor.
Five, the main technical performance indicators
The name of the
parameter
note
The biggest test (kN)
1500
-- -- -- -- --
Test force measurement range
10% - 100%.
-- -- -- -- --
Test force relative error value
< value plus or minus 1%
-- -- -- -- --
Upper and lower pressure plate spacing (mm)
350
-- -- -- -- --
Piston stroke (mm)
50
-- -- -- -- --
Column spacing (mm)
340
-- -- -- -- --
The pressure plate size (mm)
On Φ Φ under 300, 300
-- -- -- -- --
Host the dimensions (mm)
800 * 400 * 1200
-- -- -- -- --
Motor power (kW)
0.75
-- -- -- -- --
The total weight (kg)
800
-- -- -- -- --
Six, the factory standard configuration list
The name of the
The number of
note
Testing machine
1
Including motor, oil pump, back to the valve
Force measuring instrument
1
On a host computer, including the micro printer
Pressure sensor
1 only
In the avionics test
Upper and lower pressure plate
1 set of
-- -- -- -- -- -- -- -- -- --
The description, certificate, packing list
1 set of
-- -- -- -- -- -- -- -- -- --
Seven, technical information and data confidential
1. The technical solution to belong to my company's technical data, technical information and data provided by users to cope with our bear the obligation to keep confidential, regardless of whether this scheme, the clause is permanent;
2. We provide technical information and data to the user shall bear the obligation to keep confidential.
